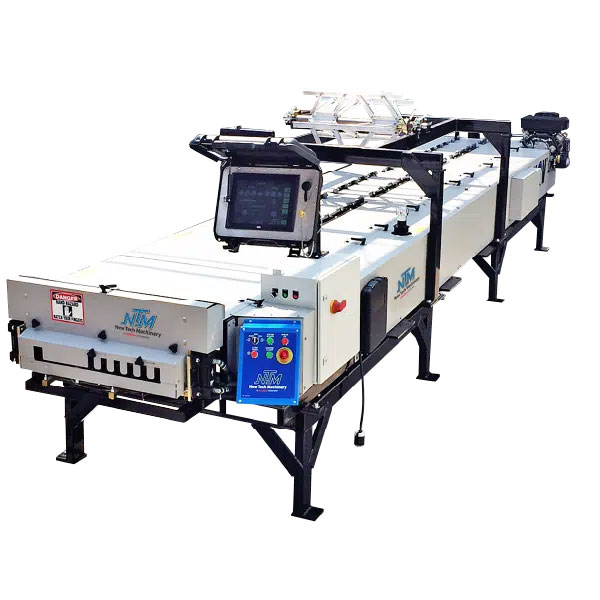

NTM WAV™ Wall Panel Machine
Call for Price
The Industry’s Only Portable WAV Profile Machine!
- Ability to produce 16″, 12″, and 8″ wide WAV-style profiles
- UNIQ Automatic Control System included
- On-site set-up/training included within continental U.S.
- Various trailer options available as well as in-plant machine stand
- Ability to run 22 or 24 ga. Grade 50 steel with all profiles (16″ profiles can be produced in 0.032″ or 0.040″ aluminum as well)
- Industry’s best warranty
- Description
- Specifications
- Resources
- Profiles
- Reviews (0)
Description
Standard Features
- Can form 8”, 12”, and 16” WAV-style profiles
- UNIQ Automatic Control System
- Hydraulic Shear
- Hydraulic Drive
- Equipped with 16 HP Gas Engine and/ or 460V 3-Phase Electric Power
- Minimum Flat Sheet Feed – Length is 62 Inches (1,575mm)
- Free on-site setup and training within the continental U.S. and Canada included
Warranty:
New Tech Machinery provides a limited three-year part and NTM in-house labor warranty.
Profile Disclaimer:
New Tech Machinery provides no warranty (finish, substrate or weather tight) in relation to the metal roofing systems the machines form. Should a warranty be required, users should consult with metal roof manufacturer or coil supplier prior to contracting on work. It is the sole responsibility of the installer and/or metal panel manufacturer to ensure that the roof system meets all engineering and local building codes.
WAV Panel Machine
- Length: 22’ 8” (6.7m)
- Width: 5’1” (1.5m)
- Height: 4’ 5” (1.2m) with Over Head Rack / 2’ 7” (.61m) without Over Head Rack
- Weight: 5,000 lbs. (2,272.7kg)
WAV On Trailer
- Length: 27’ 10” (8.2m)
- Width: 7’4” (2.1m)
- Height: 6’ 7” (1.83m) with Reel
- Weight: 8,700 lbs. (3,954.6kg)
Speed
- Up to 150 Feet Per Minute (45.7 Meters Per Minute) – Electric Power
- Up to 75 Feet Per Minute (22.8 Meters Per Minute) – Gas Power
Panel
- 16″ coverage (406mm)
- 12” (305mm)
- 8” coverage (203mm)
Drive
- Hydraulically Driven via Chain, Sprocket & Gear Using 25 Polyurethane Drive Rollers
Shear
- Hydraulically Powered, Hardened Tool Steel Blades & Shear Dies
- Panel Recognition Proximity Sensor
Hydraulic Fluid
- 24 Gallons – 32AW
Coil Width
- 24” (610mm) for the standard 16-4 profile
- See the individual profile drawings for their coil widths
Maximum Coil Diameter
- 32” (812mm) with the Overhead Reel Rack
- 45” (1,143mm) with the Free Standing Decoiler
Materials Formed
- Painted Steel: 22 or 24 Ga. (0.8mm to 0.6mm) (painted, Galvalume, coated galvanized)
- Painted Aluminum: 0.032” to 0.040” (.8mm to 1.0mm) (WAV-16-4 Profile only)
Controls
- Computer Batch & Length Control
