NTM BG7™ Box Gutter Machine
Call for Price
7″ Commercial Box Gutter Machine
- Two profiles in one machine
- The solution to your industrial gutter needs
- Offered with the industry’s best warranty
- Description
- Specifications
- Resources
- Profiles
- Reviews (0)
Description
Standard Features
- Polyurethane Drive Rollers
- Length Control Limit Switch
- Hydraulic Drive & Shear
- Power Interruption Safety Circuit
- Push Button RUN/JOG Controls at Entry & Exit Ends
- Welded Tubular Steel Frame
- Runs up to 22-gauge material
- Gutter Recognition Safety System
- Choice of: Quick-Change Power-PackTM – Gas or Electric
- Industry’s Best Warranty
Warranty:
New Tech Machinery provides a limited three-year part and NTM in-house labor warranty.
Patents:
U.S. PATENT NO. 5,394,722
BG7 Gutter Machine
- Length: 17’ 10” (5.4m)
- Width: 4’ 10½” (1.5m)
- Height with Over Head Rack: 4’ 3” (1.3m)
- Height without Over Head Rack: 2’ 8” (.8m)
- Weight (base machine with roller set, power pack, and rib rollers): 2,600 lbs. (1,180kg)

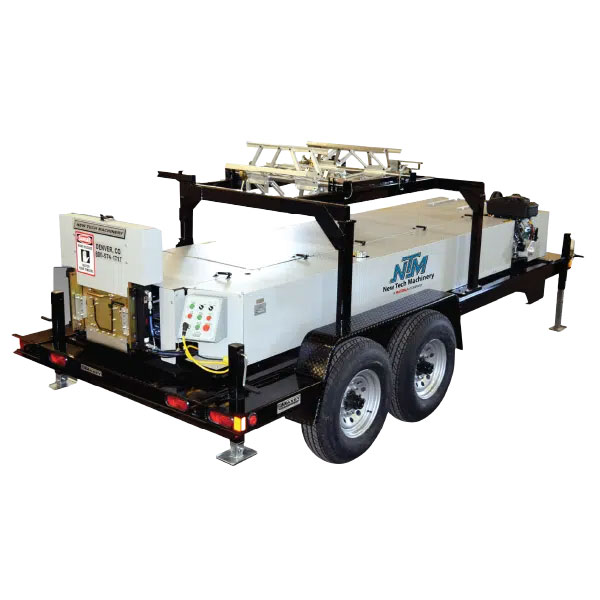

BG7 On Trailer
- Length: 21’ (6.4m)
- Width: 7’ (2.1m)
- Height with Reel: 6’ 3” (1.9m)
- Weight of machine and trailer (with roller set, power pack, and rib rollers): 4,800 lbs. (2,180kg)
Shear
- Hydraulically Powered, Hardened Tool Steel Blades & Shear Dies
- Gutter Recognition Safety System
Drive
- Hydraulically Driven Polyurethane Rollers
Speed
- 60 ft./min (18m/min) Approx.
BG7 Add-on Option Weights
- Trailer: 2,200 lbs. (1,000 kg)
- Overhead Reel Rack: 336 lbs. (152 kg)
- Expandable Arbor, each: 80 lbs. (36 kg)
- 10-foot Run-out Table, each: 62 lbs. (28 kg)
- PVC Strippable Film Applicator: 60 lbs. (27 kg)
Materials Formed
- Grade 50 Steel: 26 ga. to 22 ga. (.4mm to .8mm)
- Painted Aluminum: .040” (1.0 mm)
Coil Width
- 20” (508mm) – Straight Back, HK7 Hook
Manuals:
Literature:
BG7-HK7 with Hook
BG7-SB7 with Straight Back
