Pittsburgh Lock Forming Machine
StanGroup Pittsburgh lock forming machine that forms six HVAC duct profiles, including Pittsburgh, round seam lock, L and Z hems and C locking pin, in 22 to 26 ga steel on 110 V single-phase power.
Price on request
- Pickup in New Brunswick, NJ
- Delivery on our lift-gate truck · zones
About this product
The StanGroup Pittsburgh Lock Forming Machine is a compact multi-head lockformer for HVAC duct shops. It forms the edges needed to join square duct, round duct, square elbows and straight runs, without swapping rollers or making involved adjustments between profiles.

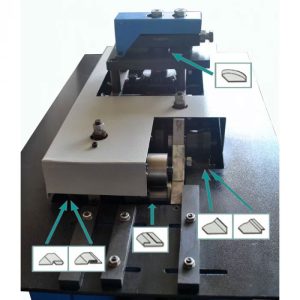

Its standard roller set forms six profiles:
- Pittsburgh lock, 1/2″ or 3/8″ (optional)
- seam lock for round duct
- single hem (L)

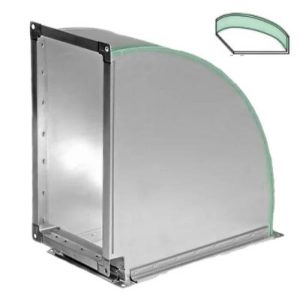

- radial single hem (L) for curved parts
- double hem (Z)

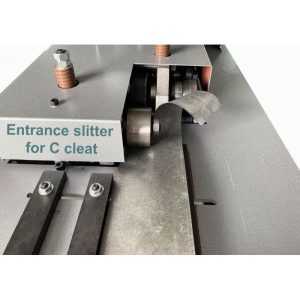

- standing seam locking pin (C)

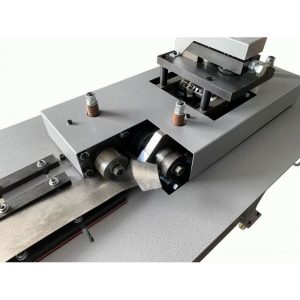

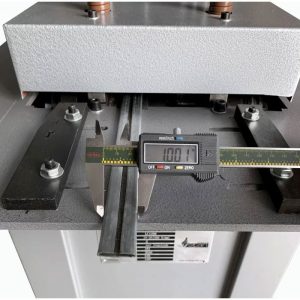

StanGroup rates it for 22 to 26 gauge low-carbon steel as standard, with heavier capacity up to 18 gauge offered as an option, and lists galvanized, stainless and aluminum as materials. The roller tools are heat treated, set up as 7 + 7 + 6 + 1 forming pairs, and run at 36 ft/min. A 2 HP motor runs on 110 V, 60 Hz, single-phase, so the machine does not need a three-phase service. It measures about 44″ x 24″ x 43″ high and weighs around 600 lb. Optional hemming flange rollers form a hemming flange up to 0.4″ wide.
The Pittsburgh Lock Seamer closes the finished seam at the bench or on site. For S cleat and drive cleat, see the S-cleat C-drive locking pin Pittsburgh and Seam Lock Forming Machine or the Pittsburgh S-cleat C-drive machine plus Flanger attachment; for snap-lock seams, the Button Punch Snap Lock-former. Steel Coil slit to strip feeds it.
It is available from our New Brunswick, NJ warehouse; call (732) 561-4275 to check stock, or add it to your quote.
Specifications
| Manufacturer | StanGroup |
|---|---|
| Article number | 410001LC10DR |
| Profiles | Pittsburgh, round seam lock, single hem L, radial L, double hem Z, locking pin C |
| Pittsburgh size | 1/2" or 3/8" (optional) |
| Capacity | 22 to 26 ga low-carbon steel; up to 18 ga optional |
| Speed | 36 ft/min |
| Roller pairs | 7 + 7 + 6 + 1 |
| Motor | 2 HP, 110 V, 60 Hz, single-phase |
| Size (L x W x H) | 44" x 24" x 43" |
| Weight | 600 lb |
Goes with it
Questions
Does it need three-phase power?
No. StanGroup lists a 2 HP motor on 110 V single-phase.
Can it form a hemming flange?
Yes, with the optional hemming flange rollers, which form a hemming flange up to 0.4 inch wide.
What gauge does it handle?
22 to 26 gauge low-carbon steel as standard; StanGroup offers up to 18 gauge as an option.
