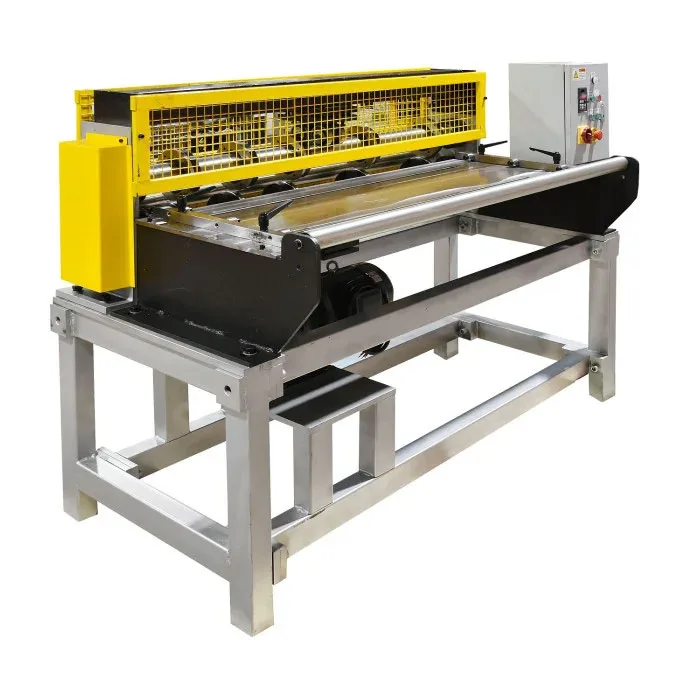

Industrial Gang Metal Slitter
StanGroup industrial gang slitter for coil up to 55" wide, with four pairs of slitting blades on 3.35" bearing-supported shafts, about 150 ft/min, for 16 to 30 gauge depending on the number of cuts.
Price on request
- Pickup in New Brunswick, NJ
- Delivery on our lift-gate truck · zones
About this product
The StanGroup Industrial Gang Metal Slitter cuts wide coil into several narrower strips in one pass. Supply yards, trim and gutter shops and panel makers use a gang slitter to turn full-width coil into the strip widths their brakes, gutter machines and roll formers take, instead of buying every width pre-slit.
StanGroup builds it for material up to 55″ wide and supplies it with four pairs of slitting blades. Top and bottom shafts are 3.35″ in diameter and both are supported by bearings, which keeps them steady on heavier gauges. Capacity runs from 16 to 30 gauge, with the heavy end depending on how many cuts you take at once. StanGroup quotes about 150 ft/min with the standard 3 HP single-phase motor at 220 V and 20 amps; three-phase 220 V motors and other speeds are offered, and its spec table lists a VFD and a chain drive, with controls on the electric box and a foot pedal. The frame takes about 68″ x 32″ of floor and stands 53″ high.
The Sheet metal perforation machine AG panel perforator shares the 55″ width and 3.35″ shafts, and its dies can be swapped for slitting rollers. To feed the slitter, use a coil stand such as the Manual Decoiler 51/8 for 51″ coil or the ESE Extra Wide Decoiler for 48″, and cut strips to length on the Industrial manual sheet metal guillotine shear HS-52. Aluminum Coil and Steel Coil are the usual feed stock.
Available from our New Brunswick, NJ warehouse. Call (732) 561-4275 to check stock, or add it to your quote.
Specifications
| Manufacturer / article | StanGroup 300001SM51 |
|---|---|
| Max width | 55" |
| Blades | 4 pairs included |
| Shafts | 3.35" dia., top and bottom bearing-supported |
| Capacity | 16 to 30 ga, depending on number of cuts |
| Speed | About 150 ft/min (standard motor) |
| Motor | 3 HP, 220 V, 1-phase, 20 A; 3-phase optional |
| Drive | Chain |
| Size (L x W x H) | 68" x 32" x 53" |
Goes with it
Questions
How many strips can it cut at once?
It comes with four pairs of slitting blades. StanGroup notes that the heaviest gauge it can cut depends on how many cuts you take.
What power does it need?
StanGroup lists a 3 HP single-phase motor at 220 V, 20 amps as standard, with three-phase 220 V motors available.
