Van Mark – Mark I Series Residential Heavy Duty 8'6"

About this product

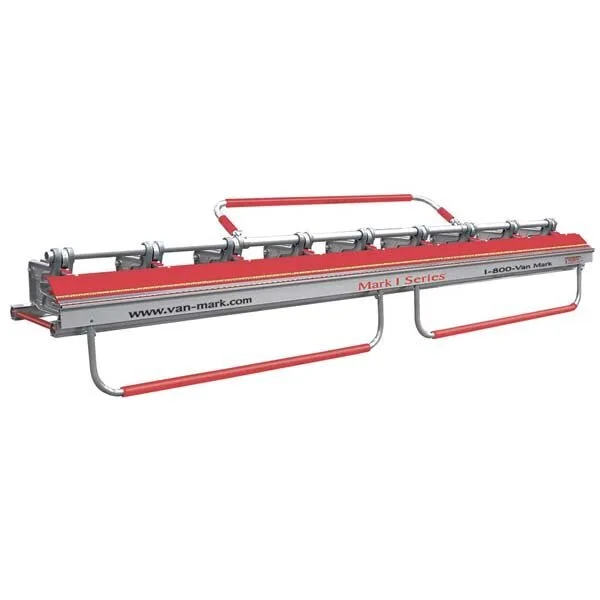

The 8’6″ Mark I Series (Van Mark model M8-S) is a light-duty portable brake for aluminum trim. It bends 8-foot pieces for fascia, frieze board and soffit returns in one pass, and it weighs 101 lb, light enough for a two-person carry.

Van Mark builds the Mark I for siding, window, door and trim work. Its cam-lock, introduced with this series in 1983, clamps the coil with an aluminum cam and UHMW polyethylene wedge, and four castings hold the sheet along its length. The traditional hinge auto-measures a 3/4″ hem for traditional J-channel pockets, and the brake bends up to 180 degrees, so hemmed drip edges and folded returns are no problem. The full-loop bending handle has several contact points, which Van Mark recommends for pieces 8 feet and longer.

Know the limits before you buy. Van Mark rates the Mark I for .027″ 3003-H14 aluminum, 29 gauge painted and galvanized steel, 24 oz soft copper, .032″ soft zinc and 29 gauge 304L stainless. If you bend .032″ coil or 26 gauge steel regularly, a Mark II TrimMaster is the better fit.

The throat is 14″ and the stand is sold separately. Popular pairings are the Van Mark Coil Cradle 24″ for feeding trim coil and the Quickscore for scoring before you snap a strip. Available from our New Brunswick, NJ warehouse. To check stock, call (732) 561-4275 or add it to your quote.
