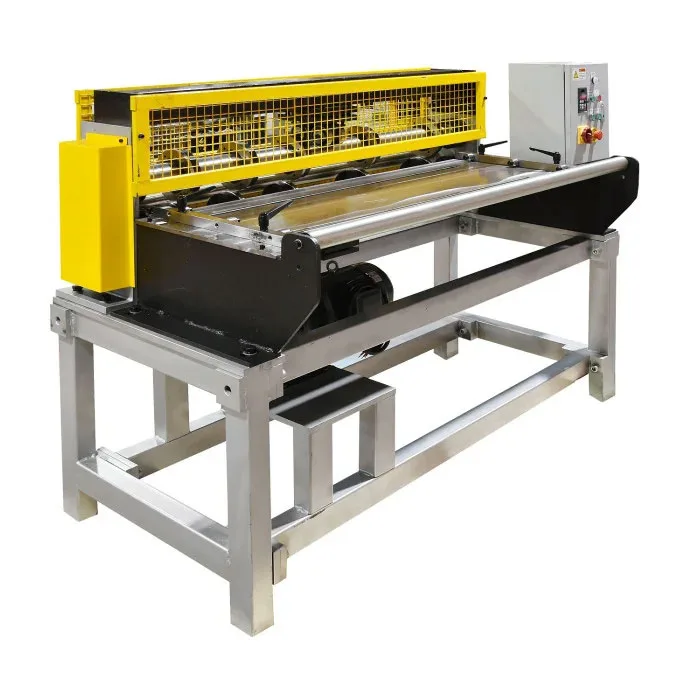

Industrial Gang Metal Slitter – Slitting machine
Gang slitting machine from StanGroup that splits coil or sheet up to 55" wide into strips at about 150 ft/min; four knife pairs on 3.35" shafts, 16 to 30 gauge, standard 3 HP motor.
Price on request
- Pickup in New Brunswick, NJ
- Delivery on our lift-gate truck · zones
About this product
This StanGroup slitting machine is a gang slitter: several pairs of round knives on two shafts cut a wide sheet or coil into strips in a single pass. It suits sheet metal shops that buy wide coil and want to cut their own gutter, trim, flashing and panel strip when a job calls for it.
The machine accepts material up to 55″ wide. It comes with four pairs of slitting knives, mounted on 3.35″ shafts that run in bearings at top and bottom for stability on heavier stock. The working range is 16 to 30 gauge; the more strips you cut at once, the lighter the maximum gauge. Line speed is about 150 ft/min on the standard 3 HP motor (220 V single phase, 20 A), and StanGroup offers three-phase 220 V motors and other speeds as options. Power reaches the shafts through a chain drive, and the operator runs it from buttons on the electric box or a foot pedal. Plan a footprint of roughly 68″ by 32″, 53″ high, plus room for the coil stand in front and for handling strip behind.
A decoiler in front makes it a simple slitting line: the Manual Decoiler 51/8 takes 51″ coil and the XLP Decoiler takes 48″. StanGroup also makes the Motorized Hydraulic Recoiler machine MR10 for winding material back onto a coil. Feed it Aluminum Coil or Steel Coil, and cut the strips to length on the Industrial manual sheet metal guillotine shear HS-52.
You can get it from our New Brunswick, NJ warehouse. Call (732) 561-4275 to check stock, or add it to your quote.
Specifications
| Manufacturer / article | StanGroup 300001SM51 |
|---|---|
| Working width | Up to 55" |
| Knives | 4 pairs included |
| Shaft diameter | 3.35", bearings top and bottom |
| Gauge range | 16 to 30 ga, by number of cuts |
| Line speed | About 150 ft/min |
| Standard motor | 3 HP, 220 V, single phase, 20 A |
| Controls | Electric box buttons, foot pedal |
| Footprint | 68" x 32", 53" high |
Goes with it
Questions
Is this the same machine as the Industrial Gang Metal Slitter?
It has the same published specifications: 55" width, four knife pairs, 3.35" shafts and 16 to 30 gauge. Call us and we will confirm which configuration is available.
Can I run thicker metal by taking fewer cuts?
Yes. StanGroup states that capacity depends on the number of cuts, so heavier gauges call for fewer strips per pass.
