About this product

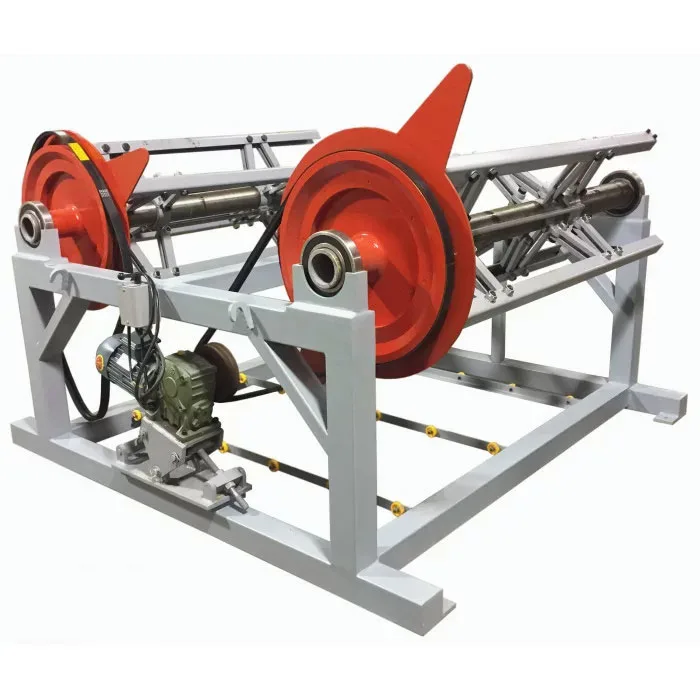

The StanGroup 5′ Motorized Double Decoiler (model CLDC60x2) is a powered coil stand with two reels, built for panel plants, slitting shops and roll forming lines that feed from full-width coil. Keeping a second coil mounted beside the one that is running shortens a color or gauge change, and the motor takes the pulling load off the machine downstream.
StanGroup rates it for coils up to 10,000 lb and 60″ (1,500 mm) wide, on a 16″ to 24″ inside diameter. One 2 HP motor on 220 V three-phase power turns the reels through a 1:40 gearbox and double V-belts, mounted on a swing tension device, and side guides keep the coil from walking sideways. Each reel is self-centering and expands inside the coil. A forward/stop/reverse switch handles basic control; a single- or three-phase VFD lets you match pay-off speed to your roll former, and a limit switch handles automatic feeding. The frame covers about 87″ x 87″ of floor, stands 70″ tall and weighs about 2,200 lb, so plan for forklift access when setting it and loading coils.
For one coil at a time, compare the Motorized Decoiler machine DC60M at the same 60″ width, or the unpowered Manual Decoiler 60/8. Load it with Steel Coil or Aluminum Coil in the width your line runs.
It is available from our New Brunswick, NJ warehouse; call (732) 561-4275 to check stock, or add it to your quote.
Specifications
| Manufacturer / model | StanGroup CLDC60x2 |
|---|---|
| Reels | 2, self-centering |
| Max coil weight | 10,000 lb |
| Max coil width | 60" (1,500 mm) |
| Coil ID | 16" to 24" |
| Drive | 2 HP motor, 1:40 gearbox, double V-belts |
| Power | 220 V, 3-phase |
| Size (L x W x H) | 87" x 87" x 70" |
| Weight | 2,200 lb |
Goes with it
Questions
Does each reel take a 10,000 lb coil?
StanGroup gives 10,000 lb and 60" as the maximum coil rating for the unit. Tell us the coil weights you plan to load on both reels and we will check them with the maker.
What power does it need?
StanGroup lists a 2 HP motor on 220 V three-phase power.
