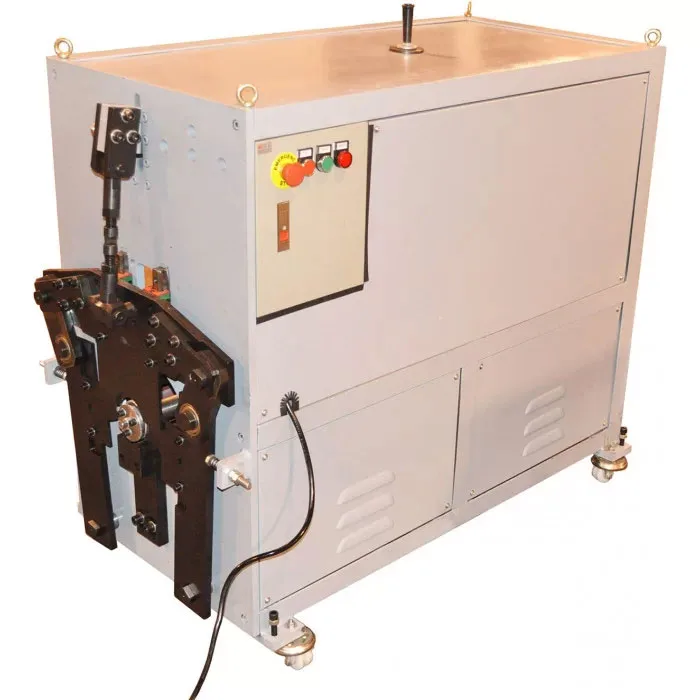

4×5 and Round & square elbow machine
StanGroup industrial elbow machine that crimps 4" x 5" rectangular and 6" to 8" round downspout or duct pipe into elbows, in aluminum, copper, galvanized, stainless or prepainted steel.
Price on request
- Pickup in New Brunswick, NJ
- Delivery on our lift-gate truck · zones
About this product
The StanGroup 4×5 and Round & square elbow machine turns straight lengths of downspout or duct into finished elbows. It is built for gutter contractors who run the larger 4″ x 5″ commercial downspout, and for sheet metal shops that need round elbows for chimney, exhaust and HVAC work. It takes lock-seamed or welded pipe.
StanGroup fits it with dies for 4″ x 5″ rectangular pipe and for round pipe from 6″ to 8″. Both round and square dies are offered, and the maker quotes a working range of 3″ to 24″ in diameter when the machine is custom built for it. It handles pipe made from aluminum, copper, galvanized steel, stainless steel and prepainted galvanized (PPGI). Output runs from 2 to 7 elbows a minute, depending on the pipe size.
The main parts are:
- a control panel
- a die set for the profile being run
- an angle adjustment that sets how many crimps go into each elbow
- the main motor and reducer
- a rotary attachment on the side for round pipe, with an edge crimping tool for square pipe
The other elbow machines in the catalog are the Electrical round and square downspout elbow machine (2″ x 3″ and 3″ x 4″ rectangular, 2″ to 4″ round), the Automatic Downspout Elbow Machine and the Manual goffering elbow machine. To make the pipe itself, pair it with the Industrial downspout machine or the Industrial and portable Downspout Machine, fed with Aluminum Coil, Copper Coil or Steel Coil. Tell us the sizes you run so we can confirm the die set.
It is available from our New Brunswick, NJ warehouse; call (732) 561-4275 to check stock, or add it to your quote.
Specifications
| Manufacturer | StanGroup |
|---|---|
| Rectangular size | 4" x 5" |
| Round size | 6" to 8" |
| Working range | 3" to 24" diameter (custom design) |
| Pipe | Seamed or welded |
| Materials | Aluminum, copper, galvanized steel, stainless steel, PPGI |
| Output | 2 to 7 elbows per minute, depending on pipe size |
| Dies | Round and square |
Goes with it
Questions
Does it work on welded pipe?
Yes. StanGroup says it makes elbows from both seamed and welded downspout and duct.
Can it make 2" x 3" or 3" x 4" elbows?
Its standard dies are 4" x 5" rectangular and 6" to 8" round. The Electrical round and square downspout elbow machine has standard dies for 2" x 3" and 3" x 4".
How fast is it?
StanGroup quotes 2 to 7 elbows per minute; the rate depends on the pipe size.
