About this product

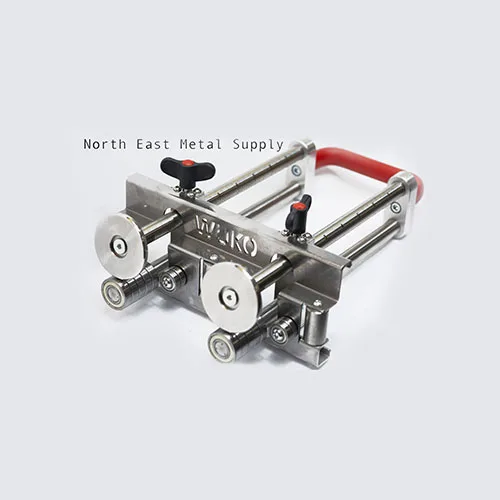

The WUKO Duo Bender is a hand flange bender for roofers and sheet metal installers who need to turn up or turn down long, straight edges on site: panel ends, flashing legs, wall and coping strips. WUKO describes it as the big brother of its Uni Bender, with a second pair of bending rolls and a handle so you can run it down a long strip and keep the bend even.
It bends from 0 to 90 degrees and is rated for 0.8 mm (about .031″) in all common roofing metals. There are two sizes: the 3202 reaches 5 to 200 mm (0.2″ to 8″) in from the edge and weighs 5.9 lb, and the 3352 reaches 5 to 350 mm (0.2″ to 14″) and weighs 7.9 lb. Both come with inch or centimeter scales. The Plus Set versions add WUKO’s Super Clamping Handle, which clips to the upper shafts to put pressure where you need it, and a Quick Click Supporting Rail that clips to the lower shafts to prevent pressure marks.
If you want to bend past 90 degrees to allow for springback, or work on painted and delicate metals, look at the WUKO Uber Bender Duo, which bends to 100 degrees with angled discs. For beads and offsets rather than flanges, use the WUKO Combo Bender.
Available from our New Brunswick, NJ warehouse. Call (732) 561-4275 to check stock, or add it to your quote.
Specifications
| Manufacturer / model | WUKO Duo Bender 3202 / 3352 |
|---|---|
| Bending angle | 0 to 90 degrees |
| Capacity | 0.8 mm, all common roofing metals |
| Bending height, 3202 | 5 to 200 mm (0.2" to 8"); 5.9 lb |
| Bending height, 3352 | 5 to 350 mm (0.2" to 14"); 7.9 lb |
Goes with it
Questions
Which size do I need?
The 3202 bends flanges up to 8" from the edge; the 3352 reaches 14". Tell us which when you order.
What does the Plus Set add?
A Super Clamping Handle for extra pressure and a Quick Click Supporting Rail that helps prevent pressure marks.
