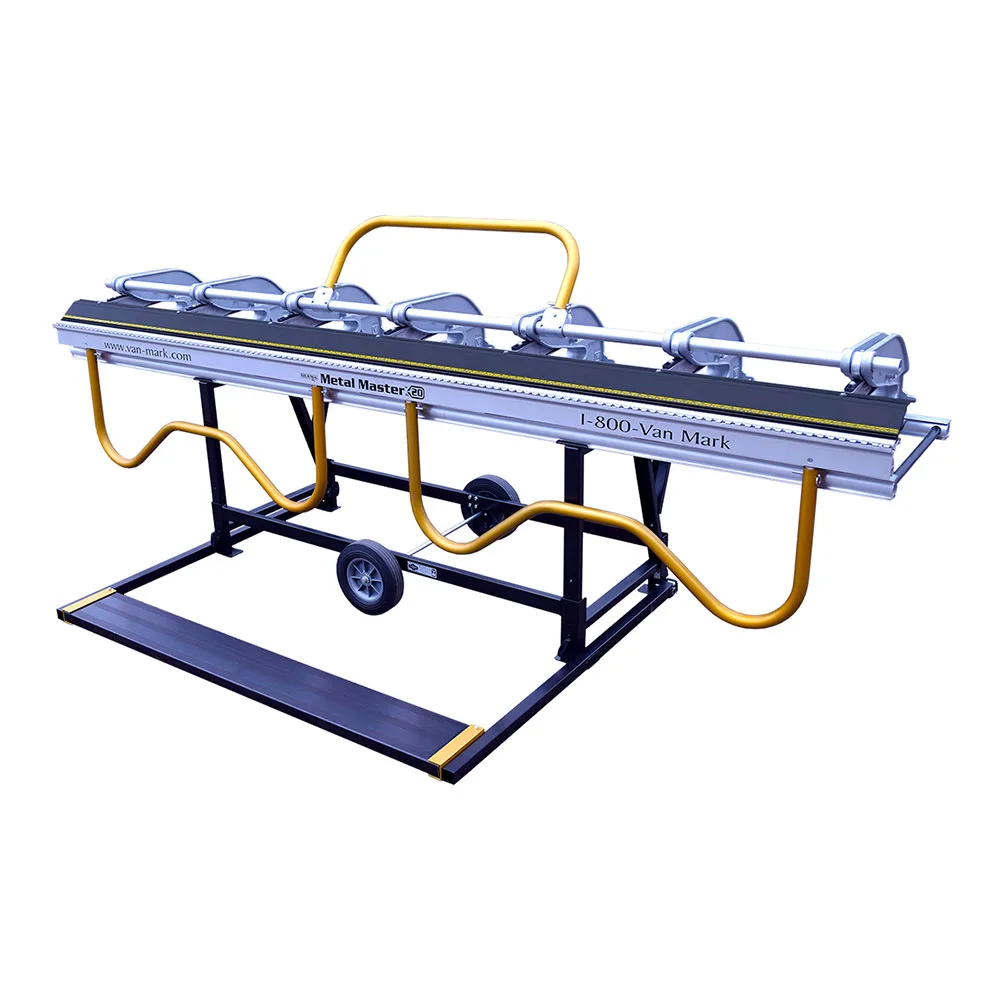

Van Mark – Industrial Metal Master 12'6"
Van Mark IM1265 Industrial Metal Master 20 EZ, 12'6": a 20" throat brake with dual bending and locking handles for long painted-steel trims up to 24 gauge. Master Stand EZ included.
Price on request
- Pickup in New Brunswick, NJ
- Delivery on our lift-gate truck · zones
- SKU MRT-VAN00011006
About this product
The 12’6″ Industrial Metal Master 20 EZ, Van Mark model IM1265, is for crews that bend long roofing trims and do not want laps every ten feet. Twelve-foot rake and eave pieces, long ridge caps and valley pans come off in one piece, which saves seams and sealant on the roof.
Long brakes need even pressure from end to end. Van Mark fits this length with nine castings and with dual bending and dual locking handles, so the clamp and the bend stay even across the whole sheet. Clamping is by cam-lock, with an aluminum cam working a UHMW polyethylene wedge; you do not have to re-adjust when you switch between aluminum and steel. The POWERslot hinge gives a 5/8″ hem without measuring, and the Power Lock bar’s 150-degree radius helps when over-bending or closing a hem.
Like the rest of the series it has a 20″ throat and is rated for .050″ aluminum, 24 gauge Grade D painted steel, 20 gauge galvanized, 36 oz soft copper, .050″ soft zinc and 24 gauge 304L stainless. It weighs 363 lb, so plan on a two-person crew to set it up. The Master Stand EZ, with center-weighted wheels, is included.
Common add-ons are the Van Mark TrimCutter for slitting strips on the brake and the Quickscore for scoring trim coil. It is available from our New Brunswick, NJ warehouse. To check stock, call (732) 561-4275 or add it to your quote.
Specifications
| Manufacturer / model | Van Mark Industrial Metal Master 20 EZ, IM1265 |
|---|---|
| Length | 12'6" (3.81 m) |
| Throat depth | 20" |
| Weight | 363 lb (165.0 kg) |
| Castings | 9 |
| Handles | Dual bending and dual locking handles |
| Hinge | POWERslot, auto-measures a 5/8" hem |
| Painted steel / aluminum | 24 ga Grade D / .050" 3003-H14 |
| Stand | Master Stand EZ included |
| Warranty | Van Mark 1-year limited warranty |
| SKU | MRT-VAN00011006 |
Goes with it
Questions
Why does the 12'6" have two sets of handles?
On a long brake, dual bending and locking handles let you clamp and lift evenly from both ends, so the bend stays straight over the full length.
How heavy is it?
Van Mark lists the IM1265 at 363 lb (165 kg). Plan on two people to move and set it up.
