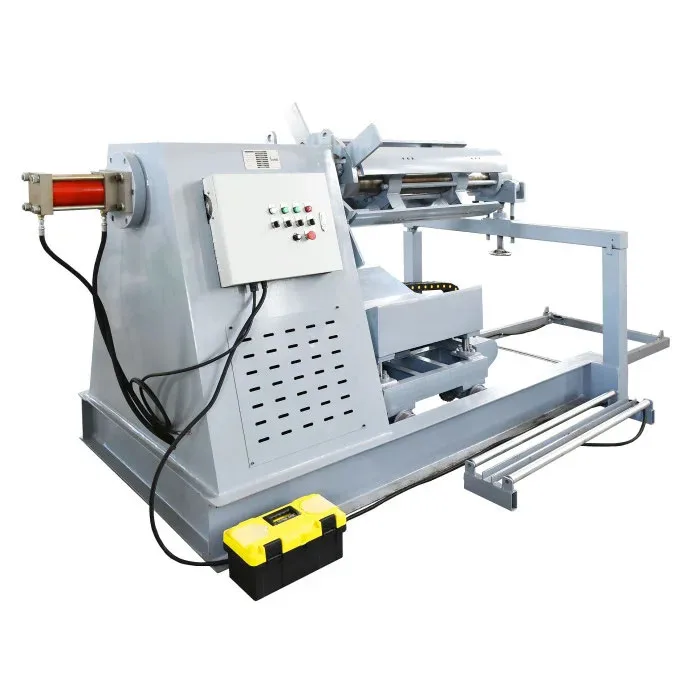

Hydraulic decoiler with loading cart 10k lbs
StanGroup hydraulic decoiler with built-in loading cart for 10,000 lb coils up to 47" wide, with adjustable speed and tension and a 7 HP three-phase drive with VFD.
Price on request
- Pickup in New Brunswick, NJ
- Delivery on our lift-gate truck · zones
About this product
The StanGroup Hydraulic decoiler with loading cart 10k lbs is a heavy-duty powered decoiler for panel and trim shops that run wide, heavy coils into a roll former, slitter or cut-to-length line. The integrated loading cart lets the operator roll a coil up to the mandrel and lift it into place, instead of hanging a 10,000 lb coil from a forklift boom.
StanGroup lists it as article 220002HD, rated for 10,000 lb (about 4,536 kg) coils, with hydraulic operation and adjustable speed and tension. Its catalog entry for the HD10000 gives a coil width up to 47″, a coil inside diameter of 17″ to 20″, and a 7 HP, 220 V three-phase drive with a VFD included, along with the loading cart.
Compared with the Hydraulic decoiler 6000lbs, this model takes coils two-thirds heavier and nearly twice as wide, and adds the loading cart. For full mill-width coils of 60″ or 115″, StanGroup’s DC60M and DC115M motorized decoilers in this catalog are the next step, and the Motorized Hydraulic Recoiler machine MR10 rewinds slit strip. A 47″ capacity also suits feeding the Industrial Gang Metal Slitter when you slit your own Steel Coil or Aluminum Coil.
It is available from our New Brunswick, NJ warehouse; call (732) 561-4275 to check stock, or add it to your quote.
Specifications
| Manufacturer | StanGroup |
|---|---|
| Article number | 220002HD (HD10000) |
| Capacity | 10,000 lb |
| Coil width | Up to 47" |
| Coil ID | 17" to 20" |
| Drive | 7 HP, 220 V, 3-phase, VFD included |
| Loading | Integrated loading cart |
Goes with it
Questions
What is the loading cart for?
It carries the coil to the mandrel and lifts it into place, so you are not hanging a heavy coil from a forklift during loading.
What coil ID does it take?
StanGroup lists a 17" to 20" coil inside diameter for the HD10000.
