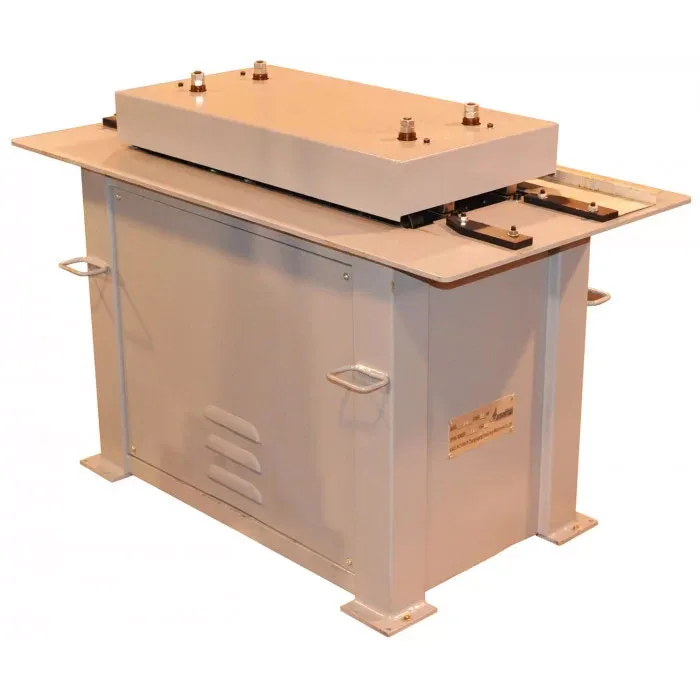

Hemming flange edge forming machine
StanGroup hemming flange edge forming machine that roll-forms two edge profiles, including a flat hemming flange, on 19 to 26 ga low-carbon steel for HVAC duct parts; 36 ft/min, 2 HP, 220 V three-phase.
Price on request
- Pickup in New Brunswick, NJ
- Delivery on our lift-gate truck · zones
About this product
The StanGroup Hemming flange edge forming machine is a compact lockformer that puts a formed edge on sheet metal parts for HVAC duct and fittings. Shops hem an edge to stiffen it and get rid of the raw cut, and turn a flange so a mating part has something to lock onto.
StanGroup describes it as forming two edge profiles without changing rollers or making involved adjustments, and names the flat hemming flange as one of them; ask us which second profile is set up on the unit you are quoting. It is rated for 19 to 26 gauge low-carbon steel (0.45 to 1.2 mm). The heat-treated roller tools are listed as 7 x 2 forming pairs, and strip runs through at 36 ft/min.
Power is a 2 HP (1.5 kW) motor on 220 to 240 V, 60 Hz, three-phase, so check that your shop has a three-phase supply before ordering. The machine measures 39″ x 27″ and stands 48″ high (1000 x 680 x 1220 mm). At about 700 lb it is small enough to sit next to a brake or shear and be moved when the shop layout changes.
Two other catalog machines work in the same area. The Double Side Hemming Flange Roll-former hems both edges of a strip in one pass and can run inline with a slitter; call us to compare the two set-ups. The Pittsburgh Lock Forming Machine takes optional hemming flange rollers for flanges up to 0.4″ wide. Steel Coil slit to strip width keeps it supplied.
It is available from our New Brunswick, NJ warehouse; call (732) 561-4275 to check stock, or add it to your quote.
Specifications
| Manufacturer | StanGroup |
|---|---|
| Article number | 120001HM |
| Profiles | 2, including flat hemming flange |
| Capacity | 19 to 26 ga (0.45 to 1.2 mm) low-carbon steel |
| Speed | 36 ft/min |
| Roller pairs | 7 x 2, heat treated |
| Motor | 2 HP (1.5 kW), 220 to 240 V, 60 Hz, 3-phase |
| Size (L x W x H) | 39" x 27" x 48" (1000 x 680 x 1220 mm) |
| Weight | 700 lb (318 kg) |
Goes with it
Questions
Does it need three-phase power?
Yes. StanGroup lists a 2 HP motor on 220 to 240 V, 60 Hz, three-phase.
How heavy a gauge can it form?
StanGroup rates it for 19 to 26 gauge low-carbon steel (0.45 to 1.2 mm).
How does it differ from the Double Side Hemming Flange Roll-former?
The double side machine hems both edges of a strip in one pass and can run inline with a slitting or roll-forming line. This one is a compact edge former that StanGroup lists for HVAC duct work.
