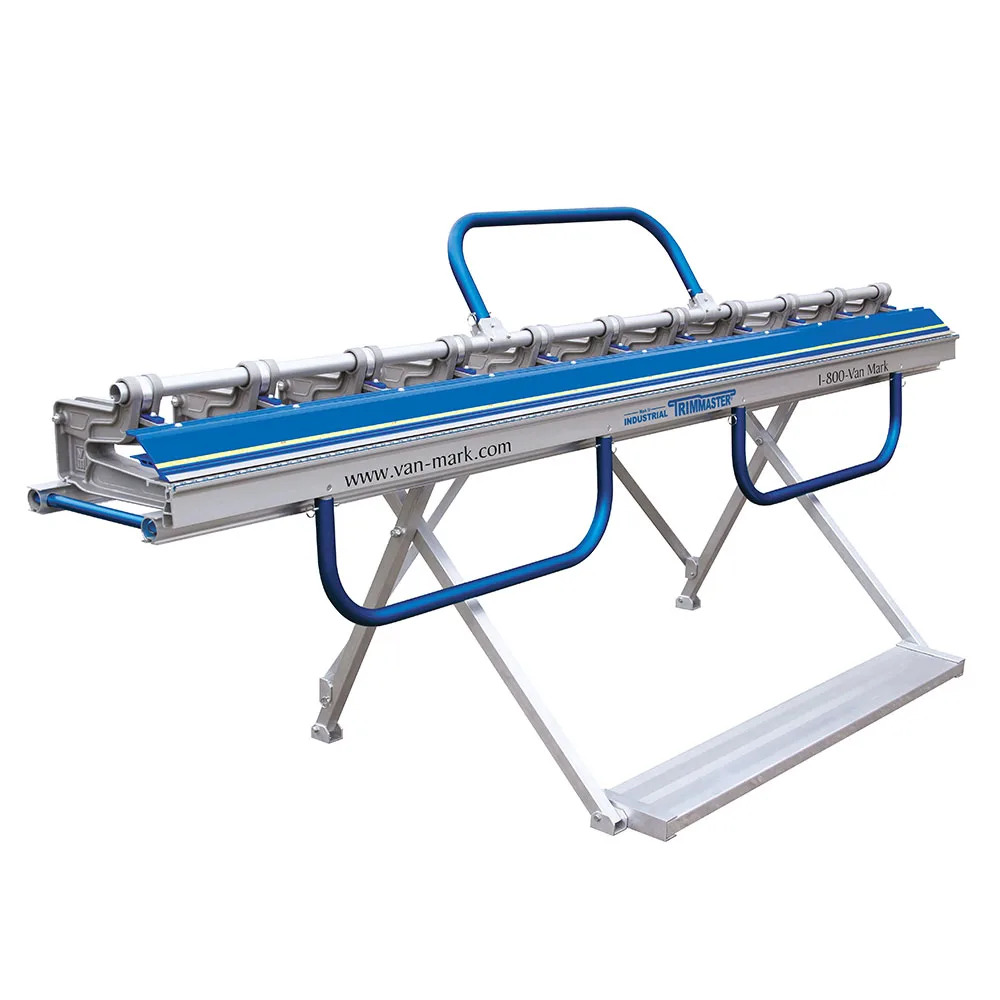

Van Mark – IT8-S Mark IV Industrial TrimMaster 8' 6"
Van Mark IT8-S Mark IV Industrial TrimMaster in 8'6": industrial clamping and a 14" throat for bending and hemming painted steel up to 24 gauge. Xtreme Stand included.
Price on request
- Pickup in New Brunswick, NJ
- Delivery on our lift-gate truck · zones
- SKU MRT-VAN00011019
About this product
Van Mark’s IT8-S is the 8’6″ Mark IV Industrial TrimMaster, an industrial brake for roofing and sheet metal contractors who bend painted steel on site. It bends a full 8-foot piece in one go, so drip edge, gable trim, sidewall and headwall flashing, and box gutter liners come out of one sheet.
The Mark IV pairs a 14″ throat with the same capacity as Van Mark’s 20″ throat industrial model. Ratings, based on standard coil and sheet, are 24 gauge Grade D painted steel, 20 gauge galvanized, .050″ 3003-H14 aluminum, 36 oz soft copper, .050″ soft zinc and 24 gauge 304L stainless. If most of your work is narrower than 28″, the 14″ throat covers it with less weight to carry.
Details that matter on the job:
- Nine castings with individually adjustable UHMW wedges for fine-tuning the clamp
- Custom-formed bending handles that bear on the hinge at four points
- POWERslot hinge that auto-measures a 5/8″ hem
- Power Lock bar with a 150-degree bending radius and AccuTrack rails for the TrimCutter and TrimFormer
- Xtreme Stand included, assembled with six fast pins
The IT8-S weighs 182 lb. Most fasteners are standard nuts and bolts, so worn hardware is easy to replace. It is available from our New Brunswick, NJ warehouse; call (732) 561-4275 to check stock, or add it to your quote.
Specifications
| Manufacturer / model | Van Mark Mark IV Industrial TrimMaster, IT8-S |
|---|---|
| Length | 8'6" (2.59 m) |
| Throat depth | 14" |
| Weight | 182 lb (82.7 kg) |
| Castings | 9 |
| Hinge | POWERslot, auto-measures a 5/8" hem |
| Painted steel / galvanized | 24 ga Grade D / 20 ga |
| Aluminum / copper / zinc | .050" / 36 oz soft / .050" soft |
| Stand | Xtreme Stand included |
| Warranty | Van Mark 1-year limited warranty |
| SKU | MRT-VAN00011019 |
Goes with it
Questions
Mark IV or Industrial Metal Master?
Both carry the same Van Mark capacity ratings. Choose the Mark IV's 14" throat for most flashing and trim, or the Industrial Metal Master's 20" throat for wide valley pans and caps.
Can I replace worn parts locally?
Van Mark builds its brakes mostly with standard off-the-shelf nuts and bolts, and says standard replacement hardware does not affect its warranty.
