NTM SSH™ MultiPro Roof Panel Machine
Call for Price
Residential / Light Commercial Multi-Profile Roof Panel Machine
- The high-performance solution to your residential and light commercial needs.
- Seven available panel profiles in variable widths, multiple gauges, and various material types
- Offered with the industry’s best warranty
- Description
- Specifications
- Resources
- Profiles
- Reviews (0)
Description
Standard Features
- Polyurethane Drive Rollers
- Powder-Coated Frame & Covers
- Power Interruption Safety Circuit
- Runs Up to 24 Gauge Steel
- Hydraulic Drive & Shear
- Length Control Limit Switch
- Included: PLC Batch / Length Computerized Controller
- Welded Tubular Steel Frame
- Choice of: EZE-ChangeTM Profile Roller System
- Push Button RUN/JOG Controls
- Choice of: Quick-ChangeTM Power-Pack (Gas or Electric)
- UL-Rated Panels (Must Be Certified by UL for Recognition)
- Choice of: One Pair of Bead, Pencil, Striation or V-Rib Rollers
Warranty:
New Tech Machinery provides a limited three-year part and NTM in-house labor warranty.
Patents:
U.S. PATENT NO. 6,772,616
Profile Disclaimer:
New Tech Machinery provides no warranty (finish, substrate or weather tight) in relation to the metal roofing systems the machines form. Should a warranty be required, users should consult with metal roof manufacturer or coil supplier prior to contracting on work. It is the sole responsibility of the installer and/or metal panel manufacturer to ensure that the roof system meets all engineering and local building codes.

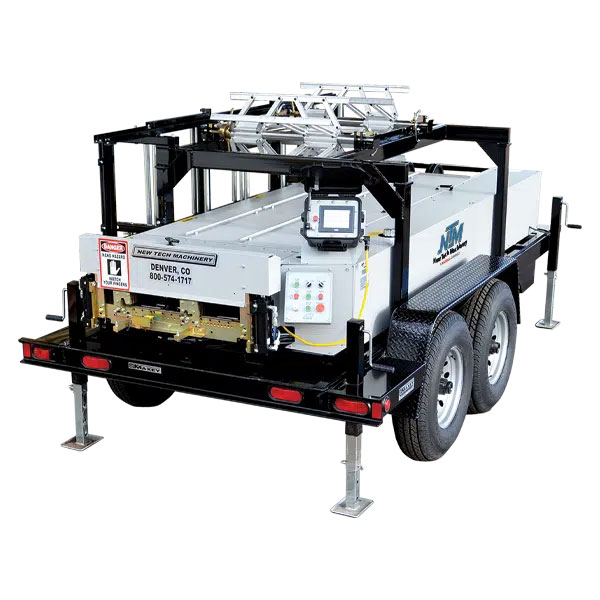

SSH Panel Machine
- Length: 12’ 10” (3.9m)
- Width: 4′ 10-1/2″ (1.2m)
- Height with Over Head Rack: 4’ 3” (1.3m)
- Height without Over Head Rack: 2’ 0” (.6m)
- Weight (Base Machine with Roller Set, Power Pack, and Rib Rollers): 2,360 lbs. (1,070kg)
SSH On Trailer
- Length: 18’ 11” (5.8m)
- Width: 7’ 2-1/2″ (2.2m)
- Height with Reel: 6’ 3” (1.9m)
- Weight of machine on trailer (including Roller Set, Power Pack, and Rib Rollers): 4,620 lbs. (2,090kg)
Shear
- Hydraulically Powered
- Infinitely Adjustable
- Hardened Tool Steel Blades & Shear Dies
- Panel Recognition Safety System
Drive
- Hydraulically Driven via Chain, Sprocket & Gear
Speed
- 60 ft./min (18.3m/min) Approx.
SSH Add-on Option Weights
- Trailer: 2,260 lbs. (1,020 kg)
- Overhead Reel Rack: 336 lbs. (152 kg)
- Expandable Arbor, each: 80 lbs. (36 kg)
- 10-foot Run-out Table, each: 62 lbs. (28 kg)
- PVC Strippable Film Applicator: 60 lbs. (27 kg)
Materials Formed
- Painted Steel: 28 ga. to 24 ga. (.4mm to .6mm) (painted, galvanized, aluminized)
- Painted Aluminum: .027” to .040” (.7mm to 1.0mm)
- Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)
- Terne-Coat Stainless Steel: 26 ga. (.6mm)
Coil Widths
- 14” to 24” (355mm to 610mm)
Finished Panel Widths
- 10” to 20” (254mm to 508mm) – Note: Variable Depending on Panel Profile
Maximum Coil Diameter
- 32” (812mm) with the Overhead Reel Rack
- 45” (1,143mm) with the Free Standing Decoiler
Power Options
- 7.5 HP, 220V, 60 Hz, 3PH, 18 amps
- 5 HP, 220V, 60 Hz, 1PH, 20 amps
- Gas Power (16 HP Briggs & Stratton Engine)
- 5 HP, 380V, 50 Hz, 3PH, 8 amps (overseas use)
- 7.5 HP, 460V, 60 Hz, 3PH, 9 amps
- 5 HP, 220V, 50 Hz, 1PH, 21 amp
Manuals:
- SSH Roof Panel Machine with PLC Controller Manual
- SSH Roof Panel Machine with PLC Controller Manual (Spanish)
Literature:
T-Panel
Clip Relief
Bead Ribs (Standard or Wide)
Pencil Ribs (Small or Large)
Striation Ribs
V-Ribs (Small or Large)
SS100 – 1″ Mechanical Seam
SS150 – 1.5″ Mechanical Seam
SS450 – 1.5″ Snap-Lock
SS450SL – 1.5″ Snap-Lock
FF100 – 1″ Snap-Lock With Slotted Flange
FF150 – 1.5″ Snap-Lock With Slotted Flange
