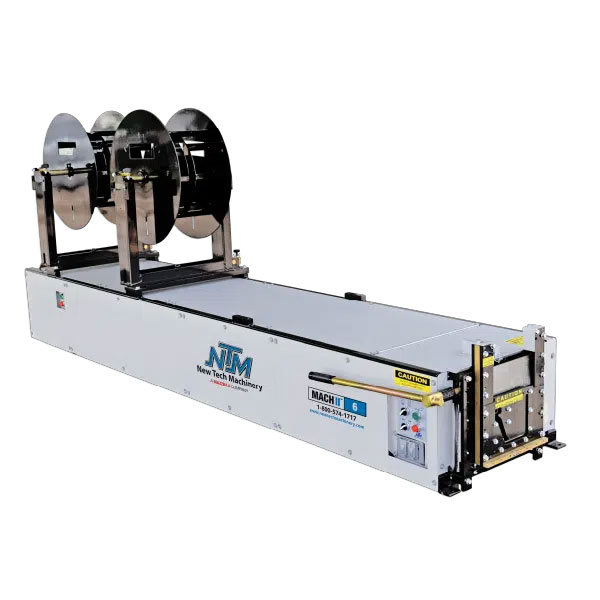

NTM MACH II™ 5″, 6″, & 5″/6″ Gutter Machines

0 out of 5

Call for Price

5”, 6”, & 5″/6” Combo Gutter Machines — The Original Polyurethane Drive System.

The award-winning MACH II™ has taken the seamless gutter industry to a whole new level. The only way to compete in the gutter-forming business is to own the MACH II™. It’s the most copied machine in the industry, so don’t get stuck with an imitation! Offered with the industry’s best warranty.

Categories: Equipment, Gutter Machines

Description
Specifications
Resources
Profiles
Reviews (0)

Description

Standard Features

Polyurethane Drive Rollers
Two 360° Rotatable Reel Stands for Easy Coil Loading
Stainless Steel Forming Rollers
Electric Motor 3/4 HP, 110 VAC, 60 Hz, 1 Ph, 11 AMPs
Push Button RUN/JOG Controls at Entry & Exit Ends
Welded Tubular Steel Frame
Forward Pulling, Easy Cut Shear for Accuracy
Industry’s Best Warranty
Power Interruption Safety Circuit
Easy Lift Reels

Warranty:

New Tech Machinery provides a limited three-year part and NTM in-house labor warranty.

Patents:

U.S. PATENT NO. 5,394,722
U.S. PATENT NO. 5,740,687

5” Gutter Machine

Length: 8’ (2.4m)
Width: 2’ (.6m)
Height: 4’ (1.2m)
Weight: 1,000 lbs. (454kg)

6” Gutter Machine

Length: 10’ (3.0m)
Width: 2’ (.6m) Plus Shear Handle
Height: 4’ (1.2m)
Weight: 1,250 lbs. (570kg)

5″/6” Gutter Machine

Length: 10’ (3.0m)
Width: 2’ (.6m) Plus Shear Handle and Extra Shear
Height: 4’ (1.2m)
Weight: 1,350 lbs. (610kg)

Speed

50 ft./min (15m/min) Approx.

Materials Formed

Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized)
Painted Aluminum: .019″ to .032″ (.5mm to .8mm)
Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)

Shear
