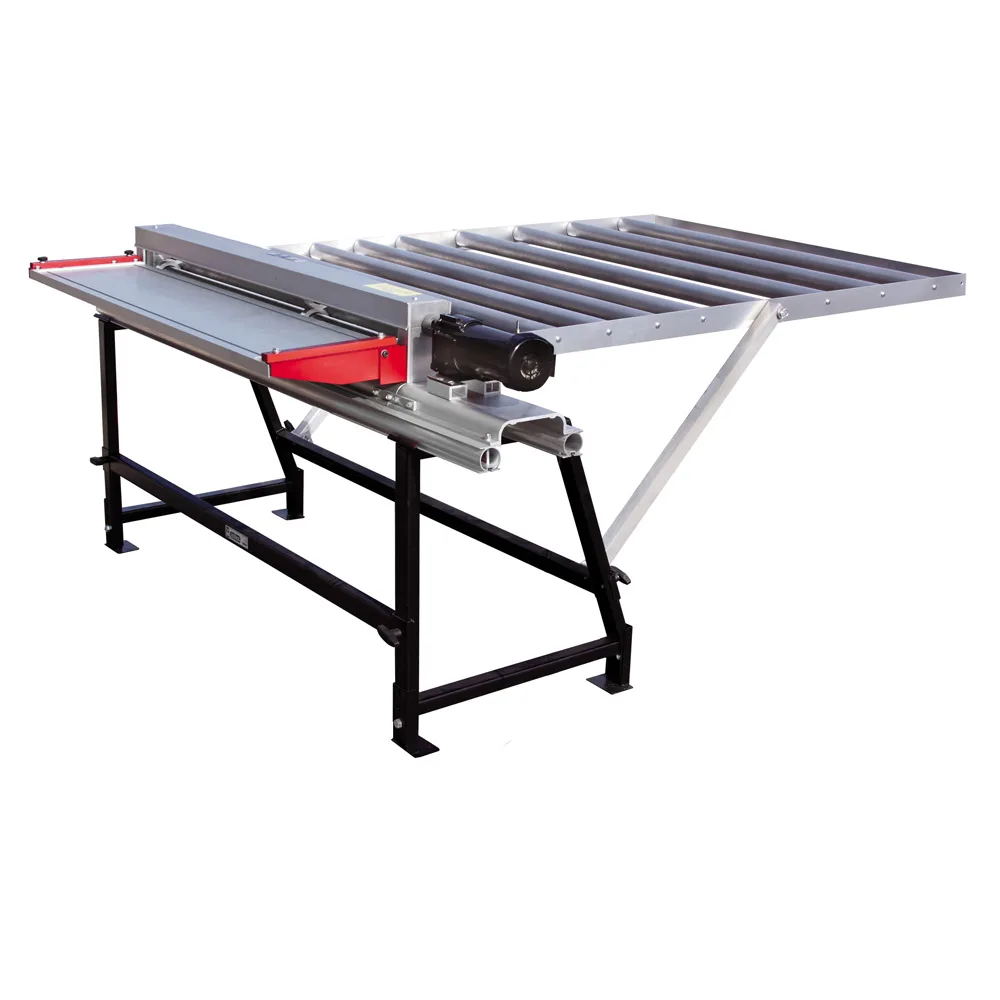

Van Mark – Industrial Trim-A-Slitter™
Call for Price
Each Trim-A-Slitter™ comes standard with 4 knives that allow two cuts with each pass. Additional knives may be added to increase productivity.*
Adds rigidity to your metal with a slightly raised rib. Also helps to eliminate ripples and adds a decorative ‘shadow line’ to wider fascia and frieze board.*
Perforator die set (optional) allows you to perforate up to .032″ aluminum, copper coil, and 24, 26 and 29 gauge painted steel with ease. (HD motor upgrade required)*
* The slitting, rib forming, and perforating capacities are based on standard metal properties for coil & sheet.
- Description
- Additional information
- Reviews (0)
Description
Forget the need to use your time consuming snips, shears, or nibblers to cut down your metals. The Industrial Trim-A-Slitter™ Combo quickly and easily slits your master coils or sheets to the desired width, leaving a clean, burr free factory edge. Slitting knives adjust in seconds. The Industrial Trim-A-Slitter™ Combo is nearly turnkey ready to set up onsite or in your metal shop and can be disassembled for easy transport and storage in minutes.
- Hardened steel, double sided slitting knives for long trouble-free service life.
- Precision ground & Polished knives provides clean burr-free edges in all types of material.
- Anodized aluminum construction stands up to the rigors of all job site weather conditions.
- Easy to set up and use knives for slitting, rib forming, and optional perforators reposition in seconds.
- Slitter knives are easy to configure and can be disassembled to add an optinal perforator die set or additionl knives to meet your changing needs.
- Folding feed table with roller guides quickly adjusts to different widths of material.
- The Built-In Tape Rule helps maintain slitter knife orientation with material.
- Can be ordered with an optional heavy duty motor and also standard and heavy duty motors for 220volt operation.
- Brass tipped set screws – Soft brass tips ensure secure position of slitting knives without damage to knives and arbor shaft.
- The perforating die set perforates steel, aluminum, zinc, and copper by producing a lanced perforation allowing 3.3″² of net free area, per running foot of metal.
- Additional accessories such as extra knives for multiple slites, rib forming, perforators, capacity boosters, and booster blocks are available, sold seperately.
CORE SPECS
Model Length Arbor Weight
SCI48 48″ (121.9 cm) (of Slitter) 2″ 265 lbs (120.5 kg)
SLITTING CAPACITIES*
Material Maximum Thickness
Aluminum (3003H14) .040″ (1.0 mm) slitting and perforating
Galvanized Steel 24 ga. (0.6 mm)
Painted Steel (Grade D) 24 ga. (0.6 mm)
Roofing Copper 24 oz.
Zinc .040″ (1.0 mm)
Stainless Steel (304L) Please call for capacities* Capacities are based on standard metal properties for coil & sheet.
1 Year Manufacturer’s Limited Warranty
Van Mark Products Corporation warrants this product against defects in material or workmanship for or a period of 1-year from the date of original purchase.
