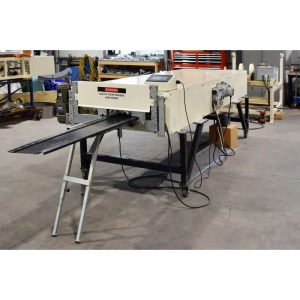

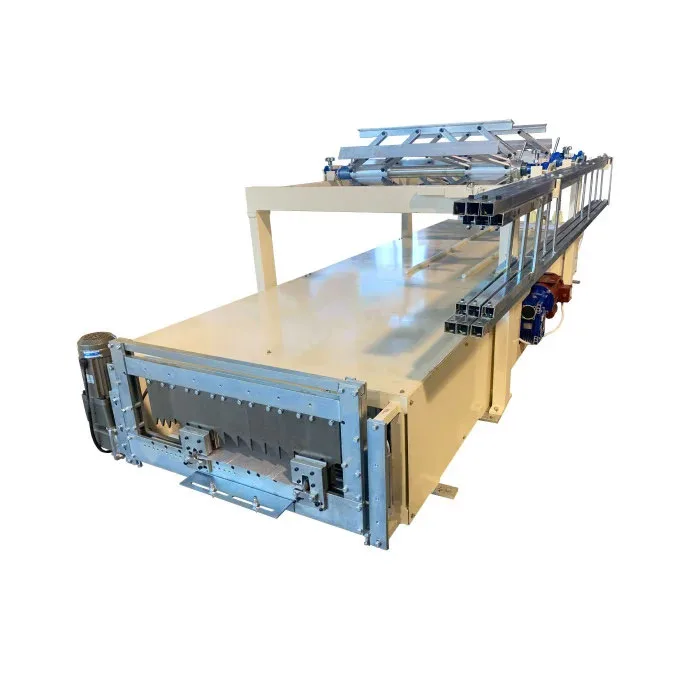

Roll-Forming Roofing Machine SS4E – PRO

Description

Features:

• 6 Urethane drive rollers
• Free-floating chrome plated forming rollers mounted
• Two sets of bead rollers convertible into two striation ribs included
• Easy adjustable width of panel from 12” – 24”* (actual width range for each panel depends on size and height of the seam)
• Includes clip relief rollers
• Easy change to different various profiles (custom design available)
• Manual Exit end shear (electrical and hydraulic drive optional)
• Material width* 15” to 28” (actual material width range depends on forming rollers installed)
• Limit switch for length control (automated length and batch controller with 10″ tough screen in optional)
• Liberty wireless control For/Rev Start/Stop
• Production speed 25 to 70 fpm (depends on chosen drive type and power)

Profile types:

download profile types in pdf

This advanced machine comes with the any available profile up to your choice.

Tooling rollers are interchangeable so you can order extra tool set or few.

Optional:

• Dual overhead reel rack
• Expandable arbor reel
• Single expandable arbor reel stand
• Heavy duty 18 oz. Tarpaulin cover

Automatic shear (hydraulic shear drive is optional)

Automated PLC control with 10″ touch screen.

Machine can be mounted on your or a new trailer.
