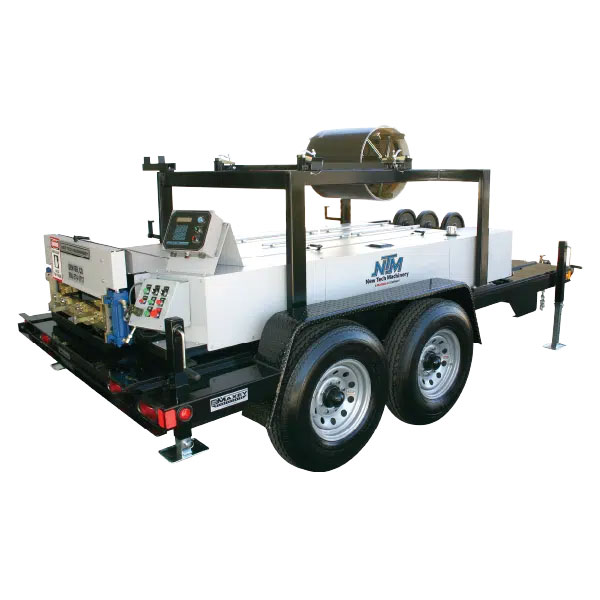

NTM 5VC-5V CRIMP™ Roof Panel Machine
Call for Price
- The portable solution to your 5V crimp needs
- Profiles available in 21” and 24” widths (533mm and 610mm), multiple gauges, and various metal types
- Industry’s best warranty
- Description
- Specifications
- Resources
- Profiles
- Reviews (0)
Description
Standard Features
- Polyurethane Drive Rollers
- Push Button RUN/JOG Controls at Entry & Exit Ends
- Hardened Stainless Steel Forming Roller System with Shear Dies
- Hydraulic Drive & Shear
- Length Control Limit Switch
- Panel Recognition Safety Proximity Switch
- Welded Tubular Steel Frame
- Power Interruption Safety Circuit
- Industry’s Best Warranty
- Choice of: Quick-Change Power-PackTM – Gas or Electric
Warranty:
New Tech Machinery provides a limited three-year part and NTM in-house labor warranty.
Patents:
U.S. PATENT NO. 6,772,616
Profile Disclaimer:
New Tech Machinery provides no warranty (finish, substrate or weather tight) in relation to the metal roofing systems the machines form. Should a warranty be required, users should consult with metal roof manufacturer or coil supplier prior to contracting on work. It is the sole responsibility of the installer and/or metal panel manufacturer to ensure that the roof system meets all engineering and local building codes.
5VC Panel Machines
- Length: 10’ 5” (3.2m)
- Width: 4’ 10-1/2” (1.2m)
- Height with Over Head Rack: 4’ 3” (1.3m)
- Height without Over Head Rack: 2’ 4” (.75m)
- Weight (Base Machine with Roller Set, Power Pack, and Rib Rollers): 2,200 lbs. (1,000kg)
5VC On Trailer
- Length: 18’ 11” (5.8m)
- Width: 7’ 2-1/2″ (2.2m)
- Height with Reel: 6’ 3” (1.9m)
- Weight of machine and trailer (including Roller Set, Power Pack, and Rib Rollers): 4,460 lbs. (2,020kg)
Shear
- Hydraulically Powered, Hardened Tool Steel Blades & Shear Dies
Drive
- Hydraulically Driven Polyurethane Rollers
Speed
- 60 ft./min (18m/min) Approx.
5VC-5V Add-on Option Weights
- Trailer: 2,260 lbs. (1,020 kg)
- Overhead Reel Rack: 336 lbs. (152 kg)
- Expandable Arbor, each: 80 lbs. (36 kg)
- 10-foot Run-out Table, each: 62 lbs. (28 kg)
- PVC Strippable Film Applicator: 60 lbs. (27 kg
Materials Formed
- Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized)
- Painted Aluminum: .027” to .040” (.7mm to 1.0mm)
- Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)
Coil Widths
- 24” (610mm)
- 27” (686mm)
- 27-1/2” (699mm)
Finished Panel Widths
- 21” (533mm) or 24” (610mm)
Maximum Coil Diameter
- 32” (812mm) with the Overhead Reel Rack
- 45” (1,143mm) with the Free Standing Decoiler
Power Options
- 7.5 HP, 220V, 60 Hz, 3PH, 18 amps
- 5 HP, 220V, 60 Hz, 1PH, 20 amps
- Gas Power (16 HP Briggs & Stratton Engine)
- 5 HP, 380V, 50 Hz, 3PH, 8 amps (overseas use)
- 7.5 HP, 460V, 60 Hz, 3PH, 9 amps
- 5 HP, 220V, 50 Hz, 1PH, 21 amp
Manuals:
- 5VC-5V Roof Panel Machine with AMS Controller Manual
- 5VC-5V Roof Panel Machine with PLC Controller Manual
Literature:
