Van Mark-3015 TrimFormer
Van Mark TrimFormer (part 3015) rides the AccuTrack rails of a Van Mark cam-lock brake to roll rib and brick-mold profiles into aluminum trim coil up to .024". Rib and brick-mold dies included.
Price on request
- Pickup in New Brunswick, NJ
- Delivery on our lift-gate truck · zones
- SKU MRT-VAN00011063
About this product
The TrimFormer turns a Van Mark bending brake into a small profiling station. It attaches to the brake’s AccuTrack rails and is pulled along the length of a piece of trim coil clamped in the brake, pressing a die into the metal to form a raised rib or a brick-mold step. The result is custom fascia and trim with detail and added rigidity, made on site to the exact length you need.

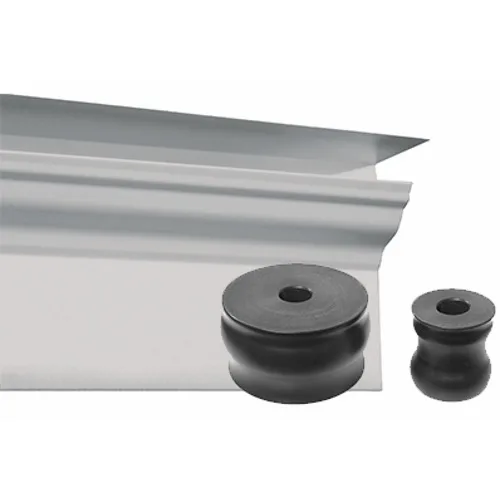

Two dies come standard. The rib form die (part 3019) adds strength and a decorative line to long, flat pieces, and the brick mold die (part 3018) shapes aluminum trim to fit over existing window casing. Optional dies add a crown molding profile (part 3025) or a bead (part 3044). The dies are smooth, high-density plastic that protects the paint during forming, and four points of contact keep the tool on track so every piece comes out the same.
- Material: most light-gauge aluminum coil stock up to .024″.
- Brakes: Van Mark cam-lock brakes built in 2000 or newer, including Mark I Series, Mark II TrimMaster, Metal Master 20, Mark IV Industrial TrimMaster and Industrial Metal Master. It does not fit the Trim-A-Brake II.
- Patents: 6,000,268 and 6,233,995.
Pair it with Aluminum Coil, the Van Mark-3025 Crown Molding Dies, a TrimCutter for clean cut-offs and a CD24 Coil Dispenser to feed coil. Van Mark covers it with a 1-year limited warranty. It is available from our New Brunswick, NJ warehouse; call (732) 561-4275 to check stock, or add it to your quote.
Specifications
| Manufacturer / part | Van Mark TrimFormer, 3015 |
|---|---|
| Included dies | Rib form (3019), brick mold (3018) |
| Optional dies | Crown mold (3025), bead form (3044) |
| Material capacity | Light-gauge aluminum coil up to .024" |
| Fits | Van Mark cam-lock brakes built 2000 or newer |
| Die material | High-density, non-marring plastic |
| Warranty | Van Mark 1-year limited |
| SKU | MRT-VAN00011063 |
Goes with it
Questions
Will it work on my older Van Mark brake?
Van Mark lists cam-locking brakes built in 2000 or newer. For an older brake, Van Mark asks owners to call them at 800-826-6275 to check fit.
Can it form steel?
Van Mark rates it for light-gauge aluminum coil stock up to .024"; heavier or harder metals are outside its listed capacity.
